Sealtech Vietnam - Bandlock 2 Closure Spares
54" Bandlock 2 Large Section Seal Material 07 - compound to be confirmed
P/N / SKU: 3232-0024-07 | Nominal size: 54" | Profile: Large Section
This product is best controlled as a coded closure spare rather than by nominal diameter alone. The same closure size may have Small Section, Large Section and several material variants.
54" Bandlock 2
Large Section
Material 07
Quick Opening Closure
Part No. 3232-0024-07
Contents: Images · Overview · Identification · Technical points · Applications · Selection guide · FAQ

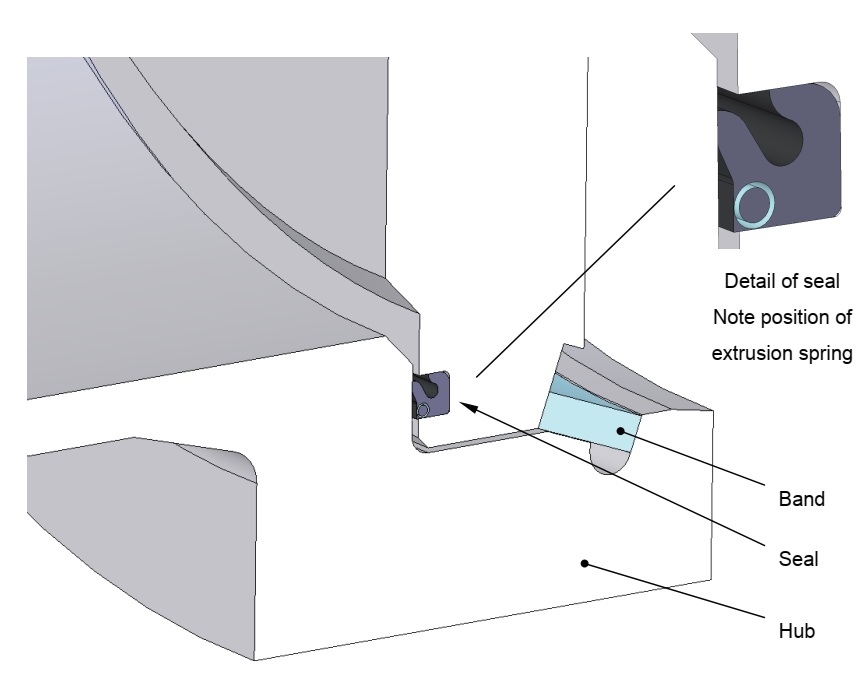

1. Product image and Bandlock 2 seal location
2. Product overview
54" Bandlock 2 Large Section Seal Material 07 - compound to be confirmed is a dedicated Bandlock 2 closure seal for a nominal 54-inch closure and belongs to the 3232 family. The complete Part No. 3232-0024-07 identifies the Large Section profile together with the Material 07 material/designation.
Large Section spares should be clearly identified on the BOM, especially at sites where both 3131 and 3232 families are installed. On very large closures, the longer seal circumference increases the risk of local twisting or uneven stretching during installation, so controlled installation is important.
For the full family and part-number logic, see Bandlock 2 Seal - Quick Opening Closure Seals. For related applications, see Oil & Gas sealing solutions and Pipeline sealing solutions.
3. Product identification
| Item | Specification |
|---|---|
| Product | 54" Bandlock 2 Large Section Seal Material 07 - compound to be confirmed |
| Part No. / SKU | 3232-0024-07 |
| Nominal size | 54 inch |
| Section profile | Large Section - family 3232 |
| Material / designation | Material 07 - compound to be confirmed |
| Material suffix | -07 |
| Product group | Quick Opening Closure / Closure Spares / Bandlock 2 Seal |
| Data to verify | Closure model and serial number, groove, process fluid, temperature, pressure class and old seal sample |
Material verification required: The source list contains suffix -07 but does not identify the compound. Confirm the OEM record, previous certificate or original seal documentation before approving material.
4. Technical points for Part No. 3232-0024-07
Correct 3232 family
The Part No. starts with 3232, identifying the Large Section. Do not substitute family 3131 unless the closure groove has been verified.
The Part No. starts with 3232, identifying the Large Section. Do not substitute family 3131 unless the closure groove has been verified.
Correct 54" nominal size
Sequence 24 in this family corresponds to the 54-inch nominal size. Adjacent closure sizes use different base codes.
Sequence 24 in this family corresponds to the 54-inch nominal size. Adjacent closure sizes use different base codes.
Correct -07 suffix
The suffix identifies the material/designation variant in the source list, so the complete Part No. should be retained when purchasing spares.
The suffix identifies the material/designation variant in the source list, so the complete Part No. should be retained when purchasing spares.
Better spare-parts control
Recording size, section, material and SKU on the BOM helps prevent incorrect seals from being issued where several closures are installed.
Recording size, section, material and SKU on the BOM helps prevent incorrect seals from being issued where several closures are installed.
Closest selection risk
If leakage appears immediately after replacement, check the full Part No., seal twist or pinching, groove cleanliness, mating-surface damage and correct locking position in that order.
For 3232-0024-07, cross-check the same nominal size in the opposite section family and the adjacent sizes before releasing a purchase order.
5. Typical applications
54" Bandlock 2 Large Section Seal Material 07 - compound to be confirmed is used to seal quick-opening closure doors on pig launchers, pig receivers, filter housings, separators, pressure vessels and other closure assemblies that are opened periodically for inspection, cleaning or removal of internal equipment.
At a nominal size of 54", this item falls into the category of very large closures where careful circumferential installation is essential. The compatibility of Material 07 must be checked against the actual process fluid and operating conditions rather than assumed from the polymer name alone.
If the original spare is obsolete or a custom replacement is required, see Make To Ordered Parts - custom sealing components. Related elastomer references are available under O-Rings & O-Ring Cord and Industrial Gaskets.
6. How to select the correct 54" Bandlock 2 Large Section Seal Material 07 - compound to be confirmed
| Step | Check | Why it matters |
|---|---|---|
| 1 | Match Part No. 3232-0024-07 | Confirms the family, size code and material suffix. |
| 2 | Confirm the 54" closure size | Prevents confusion with adjacent nominal diameters. |
| 3 | Confirm Large Section | Small and Large Section seals use different groove profiles. |
| 4 | Verify Material 07 | Material selection directly affects fluid and temperature compatibility. |
| 5 | Inspect the groove and old seal | Helps identify deformation, burrs, corrosion or an incorrect section. |
| 6 | Check the interlock and closure condition | A new seal cannot correct mechanical faults in the door or locking system. |
Safety: Bandlock 2 is a pressure-vessel closure. Remove or install the seal only after the equipment has been isolated, vented, drained and verified at zero pressure in accordance with the correct closure manual and the plant safety procedure.
7. Related products and categories
- 54" Bandlock 2 Small Section with the same material suffix
- 52" Large Section with the same material suffix
- 56" Large Section with the same material suffix
- Bandlock 2 Seal - 8" to 60" part-number guide
- Make To Ordered Parts - custom seals from samples or drawings
- O-Rings, O-Ring Cord and elastomer materials
- Industrial Gaskets
8. FAQ for Part No. 3232-0024-07
What is Part No. 3232-0024-07?
It is the Part No. for a 54" Bandlock 2 Large Section Seal with the Material 07 material/designation and suffix -07.
Can 3232-0024-07 be replaced by 3131-0024-07?
Not by default. The two codes belong to different section families and use different groove profiles even though the nominal size and material suffix are the same.
Can this seal be selected only by the 54" nominal diameter?
No. The Large Section, suffix -07, closure model/serial number and groove should also be confirmed because the same nominal diameter is available in another section family.
When should Part No. 3232-0024-07 be replaced?
Replacement should be considered when the seal is hardened, cracked, swollen, flattened, cut, permanently deformed or leaking after groove and closure-mechanism faults have been excluded.
What if the source list does not fully identify the material compound?
The material is not defined in the source list for this suffix. Keep the complete Part No. and verify the OEM record, previous certificate or original sample before supply.
9. Technical support and quotation
Sealtech Vietnam can cross-reference 3232-0024-07, verify the Bandlock 2 section profile and review the old sample, groove, fluid, temperature and pressure information before quotation.
