O-ring GAPI

Product code: O-ring GAPI
Products sold:
Transport fee: Charge when paying
Short Description

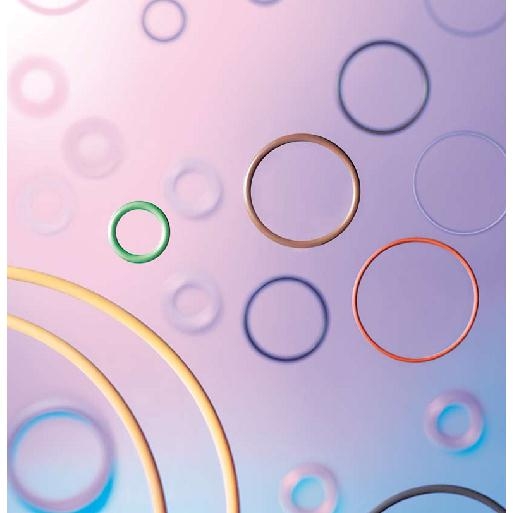

O-ring is a universal seal. It is a foundation seal as well. The "O" shape gave it the name. Different medium and usage require different material. Size of O-ring must depend on the groove dimension
 Online support

Hotline/Zalo/Viber: 0949 265 720

    #        Description                                                                           P/N
1 O-ring 1.15*1.00mm 11A001
2 O-ring 1.50*1.00mm 11B015
3 O-ring 1.80*1.00mm (SS-002) 11B018
4 O-ring 2.00*1.00mm (SS-002.5) 11B021
5 O-ring 2.50*1.00mm (SS-003) 11B027
6 O-ring 3.00*1.00mm (SS-003.5) 11B030
7 O-ring 3.50*1.00mm (SS-004) 11B031
8 O-ring 4.00*1.00mm (SS-004.5) 11B033
9 O-ring 4.50*1.00mm (SS-005) 11B034
10 O-ring 5.00*1.00mm (SS-005.5) 11B036
11 O-ring 5.50*1.00mm (SS-006) 11B037
12 O-ring 6.00*1.00mm (SS-006.5) 11B039
13 O-ring 6.50*1.00mm (SS-007) 11B038
14 O-ring 7.00*1.00mm (SS-007.5) 11B041
15 O-ring 7.50*1.00mm (SS-008) 11B043
16 O-ring 8.00*1.00mm (SS-008.5) 11B042
17 O-ring 8.50*1.00mm (SS-009) 11B045
18 O-ring 9.00*1.00mm (SS-009.5) 11B048
19 O-ring 9.50*1.00mm (SS-010) 11B047
20 O-ring 10.00*1.00mm (SS-010.5) 11B050
21 O-ring 10.50*1.00mm (SS-011) 11B052
22 O-ring 11.00*1.00mm (SS-011.5) 11B053
23 O-ring 11.50*1.00mm (SS-012) 11B046
24 O-ring 12.00*1.00mm 11B054
25 O-ring 12.50*1.00mm 11B044
26 O-ring 13.00*1.00mm 11B057
27 O-ring 13.50*1.00mm 11B035
28 O-ring 14.00*1.00mm 11B055
29 O-ring 14.50*1.00mm 11B074
30 O-ring 15.00*1.00mm 11B061
31 O-ring 15.50*1.00mm 11B076
32 O-ring 16.00*1.00mm 11B060
33 O-ring 16.50*1.00mm 11B077
34 O-ring 17.00*1.00mm 11B056
35 O-ring 17.50*1.00mm 11B091
36 O-ring 18.00*1.00mm 11B062
37 O-ring 18.50*1.00mm 11B092
38 O-ring 19.00*1.00mm 11B063
39 O-ring 19.50*1.00mm 11B106
40 O-ring 20.00*1.00mm 11B067
41 O-ring 20.50*1.00mm 11B107
42 O-ring 21.00*1.00mm 11B065
43 O-ring 21.50*1.00mm 11B109
44 O-ring 22.00*1.00mm 11B064
45 O-ring 22.50*1.00mm 11B112
46 O-ring 23.00*1.00mm 11B071
47 O-ring 23.50*1.00mm 11B113
48 O-ring 24.00*1.00mm 11B068
49 O-ring 24.50*1.00mm 11B118
50 O-ring 25.00*1.00mm 11B070
51 O-ring 0.74*1.02mm (AS001) 11A002
52 O-ring 1.78*1.02mm 11A003
53 O-ring 1.07*1.27mm (AS002) 11A004
54 O-ring 4.70*1.42mm (AS901) 11A005
55 O-ring 1.85*1.50mm 11B153
56 O-ring 2.00*1.50mm 11B156
57 O-ring 2.50*1.50mm (S-003) 11B158
58 O-ring 2.80*1.50mm 11B160
59 O-ring 3.00*1.50mm 11B162
60 O-ring 3.50*1.50mm (S-004) 11B165
61 O-ring 4.00*1.50mm 11B171
62 O-ring 4.50*1.50mm (S-005) 11B174
63 O-ring 5.00*1.50mm 11B177
64 O-ring 5.50*1.50mm (S-006) 11B180
65 O-ring 6.00*1.50mm 11B183
66 O-ring 6.50*1.50mm (S-007) 11B186
67 O-ring 7.00*1.50mm 11B188
68 O-ring 7.50*1.50mm (S-008) 11B189
69 O-ring 8.00*1.50mm 11B192
70 O-ring 8.50*1.50mm (S-009) 11B195
71 O-ring 9.00*1.50mm 11B198
72 O-ring 9.50*1.50mm (S-010) 11B200
73 O-ring 10.00*1.50mm 11B201
74 O-ring 10.50*1.50mm 11B202
75 O-ring 11.00*1.50mm 11B204
76 O-ring 11.50*1.50mm (S-012) 11B207
77 O-ring 12.00*1.50mm (S-012.5) 11B210
78 O-ring 12.50*1.50mm 11B213
79 O-ring 13.00*1.50mm 11B216
80 O-ring 13.50*1.50mm (S-014) 11B217
81 O-ring 14.00*1.50mm 11B219
82 O-ring 14.50*1.50mm (S-015) 11B220
83 O-ring 15.00*1.50mm 11B222
84 O-ring 15.50*1.50mm (S-016) 11B223
85 O-ring 16.00*1.50mm 11B225
86 O-ring 16.50*1.50mm 11B228
87 O-ring 17.00*1.50mm 11B231
88 O-ring 17.50*1.50mm (S-018) 11B232
89 O-ring 18.00*1.50mm 11B234
90 O-ring 18.50*1.50mm 11B235
91 O-ring 19.00*1.50mm 11B237
92 O-ring 19.50*1.50mm (S-020) 11B240
93 O-ring 20.00*1.50mm 11B243
94 O-ring 20.50*1.50mm 11B244
95 O-ring 21.00*1.50mm 11B246
96 O-ring 21.50*1.50mm (S-022) 11B249
97 O-ring 22.00*1.50mm 11B252
98 O-ring 22.50*1.50mm 11B253
99 O-ring 23.00*1.50mm 11B255
100 O-ring 23.50*1.50mm 11B256
101 O-ring 24.00*1.50mm 11B258
102 O-ring 24.50*1.50mm 11B259
103 O-ring 25.00*1.50mm 11B261
104 O-ring 25.50*1.50mm 11B262
105 O-ring 26.00*1.50mm 11B264
106 O-ring 26.50*1.50mm 11B265
107 O-ring 27.00*1.50mm 11B266
108 O-ring 27.50*1.50mm 11B267
109 O-ring 28.00*1.50mm 11B268
110 O-ring 28.50*1.50mm 11B263
111 O-ring 29.00*1.50mm 11B269
112 O-ring 29.50*1.50mm 11B271
113 O-ring 30.00*1.50mm 11B270
114 O-ring 30.50*1.50mm 11B272
115 O-ring 31.00*1.50mm 11B273
116 O-ring 31.50*1.50mm 11B275
117 O-ring 32.00*1.50mm 11B274
118 O-ring 32.50*1.50mm 11B260
119 O-ring 33.00*1.50mm 11B276
120 O-ring 33.50*1.50mm 11B257
121 O-ring 34.00*1.50mm 11B277
122 O-ring 34.50*1.50mm 11B254
123 O-ring 35.00*1.50mm 11B279
124 O-ring 35.50*1.50mm 11B251
125 O-ring 36.00*1.50mm 11B278
126 O-ring 36.50*1.50mm 11B250
127 O-ring 37.00*1.50mm 11B280
128 O-ring 38.00*1.50mm 11B281
129 O-ring 38.50*1.50mm 11B247
130 O-ring 39.00*1.50mm 11B282
131 O-ring 39.50*1.50mm 11B245
132 O-ring 40.00*1.50mm 11B285
133 O-ring 41.00*1.50mm 11B242
134 O-ring 42.00*1.50mm 11B286
135 O-ring 43.00*1.50mm 11B241
136 O-ring 44.00*1.50mm 11B307
137 O-ring 45.00*1.50mm 11B287
138 O-ring 46.00*1.50mm 11B239
139 O-ring 47.00*1.50mm 11B289
140 O-ring 48.00*1.50mm 11B238
141 O-ring 49.00*1.50mm 11B236
142 O-ring 50.00*1.50mm 11B291
143 O-ring 51.00*1.50mm 11B310
144 O-ring 52.00*1.50mm 11B295
145 O-ring 53.00*1.50mm 11B316
146 O-ring 54.00*1.50mm 11B296
147 O-ring 55.00*1.50mm 11B298
148 O-ring 56.00*1.50mm 11B311
149 O-ring 57.00*1.50mm 11B300
150 O-ring 58.00*1.50mm 11B299
151 O-ring 59.00*1.50mm 11B313
152 O-ring 60.00*1.50mm 11B301
153 O-ring 61.00*1.50mm 11B317
154 O-ring 62.00*1.50mm 11B302
155 O-ring 63.00*1.50mm 11B314
156 O-ring 64.00*1.50mm 11B326
157 O-ring 65.00*1.50mm 11B320
158 O-ring 66.00*1.50mm 11B290
159 O-ring 67.00*1.50mm 11B322
160 O-ring 68.00*1.50mm 11B233
161 O-ring 69.00*1.50mm 11B230
162 O-ring 70.00*1.50mm 11B305
163 O-ring 71.00*1.50mm 11B229
164 O-ring 72.00*1.50mm 11B227
165 O-ring 73.00*1.50mm 11B283
166 O-ring 74.00*1.50mm 11B226
167 O-ring 75.00*1.50mm 11B224
168 O-ring 76.00*1.50mm 11B337
169 O-ring 77.00*1.50mm 11B338
170 O-ring 78.00*1.50mm 11B340
171 O-ring 79.00*1.50mm 11B343
172 O-ring 80.00*1.50mm 11B284
173 O-ring 81.00*1.50mm 11B344
174 O-ring 82.00*1.50mm 11B349
175 O-ring 83.00*1.50mm 11B350
176 O-ring 84.00*1.50mm 11B352
177 O-ring 85.00*1.50mm 11B359
178 O-ring 86.00*1.50mm 11B361
179 O-ring 87.00*1.50mm 11B362
180 O-ring 88.00*1.50mm 11B364
181 O-ring 89.00*1.50mm 11B368
182 O-ring 90.00*1.50mm 11B335
183 O-ring 91.00*1.50mm 11B370
184 O-ring 92.00*1.50mm 11B371
185 O-ring 93.00*1.50mm 11B373
186 O-ring 94.00*1.50mm 11B385
187 O-ring 95.00*1.50mm 11B386
188 O-ring 96.00*1.50mm 11B388
189 O-ring 97.00*1.50mm 11B436
190 O-ring 98.00*1.50mm 11B437
191 O-ring 99.00*1.50mm 11B439
192 O-ring 100.00*1.50mm 11B440
193 O-ring 1.42*1.52mm (AS003) 11A006
194 O-ring 2.20*1.60mm 11A007
195 O-ring 2.75*1.60mm 11A008
196 O-ring 3.10*1.60mm 11A009
197 O-ring 4.10*1.60mm 11A010
198 O-ring 4.70*1.60mm 11A011
199 O-ring 5.00*1.60mm 11A012
200 O-ring 5.10*1.60mm 11A013
201 O-ring 6.10*1.60mm 11A014
202 O-ring 7.10*1.60mm 11A015
203 O-ring 8.10*1.60mm 11A016
204 O-ring 9.10*1.60mm 11A017
205 O-ring 10.10*1.60mm 11A018
206 O-ring 11.10*1.60mm 11A019
207 O-ring 12.10*1.60mm 11A020
208 O-ring 13.10*1.60mm 11A021
209 O-ring 14.10*1.60mm 11A022
210 O-ring 15.10*1.60mm 11A023
211 O-ring 16.10*1.60mm 11A024
212 O-ring 17.10*1.60mm 11B955
213 O-ring 18.10*1.60mm 11B956
214 O-ring 19.10*1.60mm 11A025
215 O-ring 20.10*1.60mm 11A026
216 O-ring 22.10*1.60mm 11A028
217 O-ring 25.10*1.60mm 11A029
218 O-ring 27.10*1.60mm 11A030
219 O-ring 29.10*1.60mm 11A031
220 O-ring 32.10*1.60mm 11A032
221 O-ring 35.10*1.60mm 11A033
222 O-ring 37.10*1.60mm 11A034
223 O-ring 6.07*1.63mm 11A035
224 O-ring 7.65*1.63mm 11A036
225 O-ring 1.78*1.78mm (AS004) 11A037
226 O-ring 2.57*1.78mm (AS005) 11A038
227 O-ring 2.90*1.78mm (AS006) 11A039
228 O-ring 3.17*1.78mm 11B347
229 O-ring 3.68*1.78mm (AS007) 11A040
230 O-ring 4.47*1.78mm (AS008) 11A041
231 O-ring 4.76*1.78mm 11B353
232 O-ring 5.28*1.78mm (AS009) 11A042
233 O-ring 6.07*1.78mm (AS010) 11A043
234 O-ring 6.35*1.78mm 11A044
235 O-ring 6.75*1.78mm 11A045
236 O-ring 7.65*1.78mm (AS011) 11A046
237 O-ring 7.94*1.78mm 11B356
238 O-ring 8.73*1.78mm 11A047
239 O-ring 9.25*1.78mm (AS012) 11A048
240 O-ring 9.52*1.78mm 11A049
241 O-ring 10.82*1.78mm (AS013) 11A050
242 O-ring 11.11*1.78mm 11A051
243 O-ring 12.42*1.78mm (AS014) 11A052
244 O-ring 14.00*1.78mm (AS015) 11A053
245 O-ring 15.60*1.78mm (AS016) 11A054
246 O-ring 17.17*1.78mm (AS017) 11A055
247 O-ring 18.77*1.78mm (AS018) 11A056
248 O-ring 20.35*1.78mm (AS019) 11A057
249 O-ring 21.95*1.78mm (AS020) 11A058
250 O-ring 23.52*1.78mm (AS021) 11A059
251 O-ring 25.12*1.78mm (AS022) 11A060
252 O-ring 26.70*1.78mm (AS023) 11A061
253 O-ring 28.30*1.78mm (AS024) 11A062
254 O-ring 29.87*1.78mm (AS025) 11A063
255 O-ring 31.47*1.78mm (AS026) 11A064
256 O-ring 33.05*1.78mm (AS027) 11A065
257 O-ring 34.65*1.78mm (AS028) 11A066
258 O-ring 36.27*1.78mm 11B374
259 O-ring 37.82*1.78mm (AS029) 11A067
260 O-ring 39.45*1.78mm 11B379
261 O-ring 41.00*1.78mm (AS030) 11A068
262 O-ring 44.17*1.78mm (AS031) 11A069
263 O-ring 47.35*1.78mm (AS032) 11A070
264 O-ring 50.52*1.78mm (AS033) 11A071
265 O-ring 53.70*1.78mm (AS034) 11A072
266 O-ring 56.87*1.78mm (AS035) 11A073
267 O-ring 60.04*1.78mm (AS036) 11A074
268 O-ring 63.22*1.78mm (AS037) 11A075
269 O-ring 66.40*1.78mm (AS038) 11A076
270 O-ring 69.57*1.78mm (AS039) 11A077
271 O-ring 72.75*1.78mm (AS040) 11A078
272 O-ring 75.92*1.78mm (AS041) 11A079
273 O-ring 79.00*1.78mm 11B395
274 O-ring 82.27*1.78mm (AS042) 11A080
275 O-ring 85.34*1.78mm 11B397
276 O-ring 88.62*1.78mm (AS043) 11A081
277 O-ring 91.70*1.78mm 11B398
278 O-ring 94.97*1.78mm (AS044) 11A082
279 O-ring 98.05*1.78mm 11B400
280 O-ring 101.32*1.78mm (AS045) 11A083
281 O-ring 104.40*1.78mm 11B401
282 O-ring 107.67*1.78mm (AS046) 11A084
283 O-ring 110.74*1.78mm 11B403
284 O-ring 117.10*1.78mm 11B404
