PGY-Packing 150F

PGY-Packing 150F is an industrial industrial seal selected for industrial equipment sealing. The product record retains the original SKU, images and commercial data for Sapo import.

Contact Sealtech on Zalo View Industrial Seal Category

Product identification

Product

PGY-Packing 150F

SKU / Part number

PGY-150F

Reference size

Confirm against the drawing or existing sample

Selection guidance

Select this industrial seal by checking the equipment model, installation dimensions, working fluid, temperature, pressure, speed and operating cycle. A matching nominal size alone does not guarantee interchangeability; the profile and mating groove must also correspond to the application.

Technical dimensions

The original numeric size data is retained below. Confirm all units, tolerances and mating dimensions before ordering.

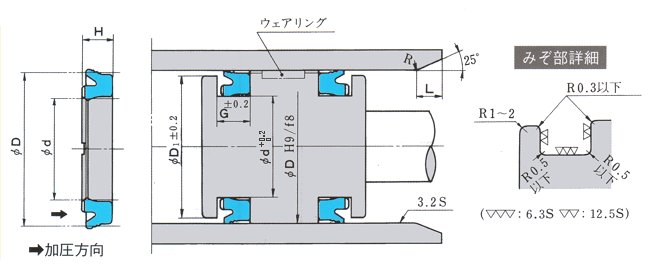

Packing / Groove Dimensions (Unit：mm)						Instruction code
D	d	H	G	D₁	L	Standard(RN 713)	For heat resistance(RF 905)
20	12	5.2	5.7	17	3	PGY -0020001N713
25	17	5.2	5.7	23	3	PGY -0025001N713
28	20	5.2	5.7	26	3	PGY -0028001N713
30	22.4	5.2	5.7	29	3	PGY- 30
32	24	5.2	5.7	31	3	PGY - 32
40	30	6.5	7	39	3	PGY- 40
50	40	6.5	7	49	3	PGY- 50
63	53	6.5	7	62	3	PGY- 63
80	70	6.5	7	79	3	PGY- 80
100	85	9.5	10	98.5	4	PGY-100	PGY-100F
120	105	9.5	10	118.5	4	PGY-120
125	110	9.5	10	123.5	4	PGY-125	PGY-125F
140	125	9.5	10	138.5	4	PGY-140
150	135	9.5	10	148.5	4	PGY-150	PGY-150F
160	145	9.5	10	158.5	4	PGY-160
180	165	9.5	10	178.5	4	PGY-180
200	180	12	13	198	5	PGY-200
250	230	12	13	248	5	PGY-250
300	280	14	15	298	5	PGY -300

Installation and maintenance

Clean the groove, shaft or housing and remove burrs, sharp edges and contamination.
Compare the new component with the removed sample and confirm its orientation.
Use a compatible assembly lubricant and protect the sealing edge while passing threads, keyways or ports.
Install without twisting, overstretching or striking the sealing surface.
Start the equipment at low load and inspect for leakage, heat, noise or abnormal friction.
