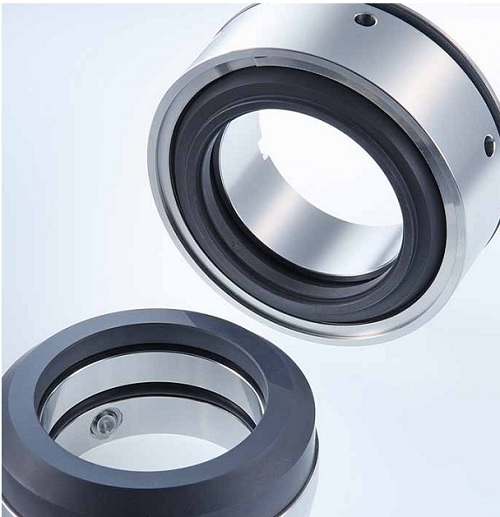

Mechanical Seal EK777

Product code: Mechanical Seal EK777

Products sold:

Transport fee: Charge when paying

Short Description

Mechanical Seal EK777 is an industrial mechanical seal for rotating equipment sealing. Sealtech Vietnam supports cross-referencing by SKU, dimensions, equipment model, fluid, temperature and pressure. Send the existing sample details for technical checking, availability and quotation.

Online support

Hotline/Zalo/Viber: 0949 265 720

Mechanical Seal EK777

Mechanical Seal EK777 is an industrial mechanical seal selected for rotating equipment sealing. The product record retains the original SKU, images and commercial data for Sapo import.

Contact Sealtech on Zalo View Mechanical Seal Category

Product identification

Product

Mechanical Seal EK777

SKU / Part number

Mechanical Seal EK777

Reference size

Confirm against the drawing or existing sample

Selection guidance

Select this mechanical seal by checking the equipment model, installation dimensions, working fluid, temperature, pressure, speed and operating cycle. A matching nominal size alone does not guarantee interchangeability; the profile and mating groove must also correspond to the application.

Technical dimensions

The original numeric size data is retained below. Confirm all units, tolerances and mating dimensions before ordering.

d	d1	d2	d3	l	l1	l2
20	50	44	48	56	27	29
25	54	48	52	56	27	29
30	60	55	57	56	27	29
35	64	58	62	56	27	29
40	72	63	69	62	31	31
45	76	68	74	62	31	31
50	85	78	82	66	33	33
55	90	82	86	66	33	33
60	100	90	96	66	33	33
65	105	93	99	66	33	33
70	110	99	105	66	33	33
75	115	104	110	66	33	33
80	120	111	117	68	35	33
85	127	112	123	68	35	33
90	132	120	125	68	35	33
95	140	129	135	68	35	33
100	145	132	138	68	35	33
105	150	137	143	68	35	33
110	162	144	150	68	35	33

Installation and maintenance

Clean the groove, shaft or housing and remove burrs, sharp edges and contamination.
Compare the new component with the removed sample and confirm its orientation.
Use a compatible assembly lubricant and protect the sealing edge while passing threads, keyways or ports.
Install without twisting, overstretching or striking the sealing surface.
Start the equipment at low load and inspect for leakage, heat, noise or abnormal friction.

FAQ

How do I confirm the correct size?

Provide the SKU, equipment model, measured dimensions and a clear photograph of the existing part.

Can products with the same nominal size be interchanged?

Only after the profile, material, tolerances and operating conditions have also been verified.

Which material should be selected?

Material selection depends on fluid compatibility, temperature, pressure, speed and required service life.

What information is needed for a quotation?

Send the product code, quantity, dimensions, working conditions and delivery location.

Request a quotation for Mechanical Seal EK777

Sealtech Vietnam can cross-reference the product by SKU, dimensions, equipment model and application data.

Contact Sealtech on Zalo View Related Products
