Mechanical Seal LB500

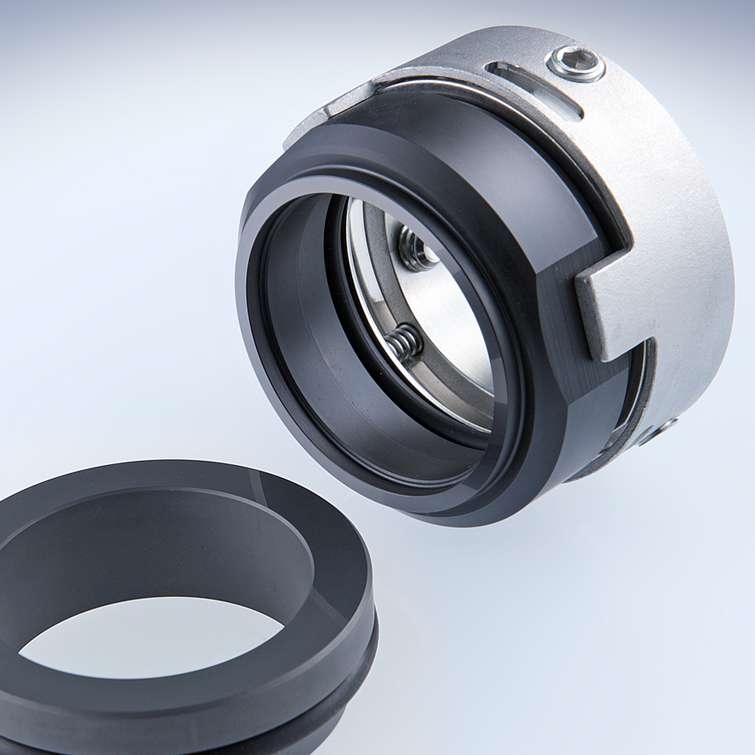

Mechanical Seal LB500 is an industrial mechanical seal selected for rotating equipment sealing. The product record retains the original SKU, images and commercial data for Sapo import.
Product identification
Product
Mechanical Seal LB500
SKU / Part number
Mechanical seal LB500
Reference size
Confirm against the drawing or existing sample
Selection guidance
Select this mechanical seal by checking the equipment model, installation dimensions, working fluid, temperature, pressure, speed and operating cycle. A matching nominal size alone does not guarantee interchangeability; the profile and mating groove must also correspond to the application.
Technical dimensions
The original numeric size data is retained below. Confirm all units, tolerances and mating dimensions before ordering.
| d | d1 | d2 | d3 | d4 | d5 | d6 | l | l1 | l2 | l3 | l4 | l5 | b |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 39 | 41 | 29 | 35 | 20 | 44 | 34 | 10 | 5.5 | 2 | 24 | 3 | 3.5 |
| 28 | 42 | 44 | 33 | 39 | 24 | 44 | 34 | 10 | 5.5 | 2 | 24 | 3 | 3.5 |
| 30 | 44 | 46 | 34 | 40 | 25 | 44 | 34 | 10 | 5.5 | 2 | 24 | 3 | 3.5 |
| 32 | 46 | 48 | 37 | 43 | 27 | 44 | 34 | 10 | 5.5 | 2 | 24 | 3 | 3.5 |
| 33 | 47 | 49 | 37 | 43 | 28 | 44 | 34 | 10 | 5.5 | 2 | 24 | 3 | 3.5 |
| 35 | 49 | 51 | 39 | 45 | 30 | 44 | 34 | 10 | 5.5 | 2 | 24 | 3 | 3.5 |
| 38 | 55 | 58 | 42 | 48 | 33 | 45 | 35 | 10 | 5 | 2 | 25 | 3 | 3.5 |
| 40 | 57 | 60 | 44 | 50 | 35 | 45 | 35 | 10 | 5 | 2 | 25 | 3 | 3.5 |
| 42 | 59 | 62 | 49 | 56 | 37 | 48 | 37 | 11 | 5 | 2 | 25 | 4 | 4 |
| 43 | 60 | 63 | 49 | 56 | 38 | 48 | 37 | 11 | 5 | 2 | 25 | 4 | 4 |
| 45 | 62 | 65 | 51 | 58 | 40 | 48 | 37 | 11 | 5 | 2 | 25 | 4 | 4.5 |
| 48 | 65 | 68 | 54 | 61 | 43 | 48 | 37 | 11 | 5 | 2 | 25 | 4 | 4.5 |
| 50 | 67 | 70 | 56 | 63 | 45 | 48 | 37 | 11 | 6 | 2 | 25 | 4 | 4.5 |
| 53 | 70 | 73 | 59 | 66 | 48 | 48 | 37 | 11 | 6 | 2 | 25 | 4 | 4.5 |
| 55 | 72 | 75 | 62 | 70 | 50 | 50 | 37 | 13 | 6 | 2.5 | 25 | 4 | 4.5 |
| 60 | 77 | 85 | 67 | 75 | 55 | 50 | 37 | 13 | 6 | 2.5 | 25 | 4 | 5 |
| 63 | 80 | 88 | 70 | 78 | 58 | 50 | 37 | 13 | 6 | 2.5 | 25 | 4 | 5 |
| 65 | 82 | 90 | 72 | 80 | 60 | 50 | 37 | 13 | 6 | 2.5 | 25 | 4 | 5 |
| 70 | 87 | 95 | 77 | 85 | 65 | 50 | 37 | 13 | 6 | 2.5 | 25 | 4 | 5 |
| 75 | 92 | 104 | 83 | 92 | 70 | 53 | 38 | 15 | 7 | 2.5 | 25 | 4 | 5 |
| 80 | 97 | 109 | 88 | 97 | 75 | 53 | 38 | 15 | 7 | 2.5 | 25 | 4 | 5 |
| 85 | 102 | 114 | 95 | 105 | 80 | 53 | 37.5 | 15.5 | 7 | 3 | 25 | 4 | 6 |
| 90 | 107 | 119 | 100 | 110 | 85 | 53 | 37.5 | 15.5 | 7 | 3 | 25 | 4 | 6 |
| 95 | 112 | 124 | 105 | 115 | 90 | 53 | 37.5 | 15.5 | 7 | 3 | 25 | 4 | 6 |
| 100 | 117 | 129 | 110 | 120 | 95 | 53 | 37.5 | 15.5 | 7 | 3 | 25 | 4 | 6 |
| 105 | 122 | 134 | 115 | 125 | 100 | 4 | 53 | 37.5 | 15.5 | 7 | 3 | 25 | 6 |
| 110 | 127 | 139 | 120 | 130 | 105 | 4 | 53 | 37.5 | 15.5 | 7 | 3 | 25 | 6 |
Installation and maintenance
- Clean the groove, shaft or housing and remove burrs, sharp edges and contamination.
- Compare the new component with the removed sample and confirm its orientation.
- Use a compatible assembly lubricant and protect the sealing edge while passing threads, keyways or ports.
- Install without twisting, overstretching or striking the sealing surface.
- Start the equipment at low load and inspect for leakage, heat, noise or abnormal friction.
FAQ
How do I confirm the correct size?
Provide the SKU, equipment model, measured dimensions and a clear photograph of the existing part.
Can products with the same nominal size be interchanged?
Only after the profile, material, tolerances and operating conditions have also been verified.
Which material should be selected?
Material selection depends on fluid compatibility, temperature, pressure, speed and required service life.
What information is needed for a quotation?
Send the product code, quantity, dimensions, working conditions and delivery location.
Request a quotation for Mechanical Seal LB500
Sealtech Vietnam can cross-reference the product by SKU, dimensions, equipment model and application data.
