Phốt dầu NOK TCZ
Phốt dầu NOK TCZ is an industrial oil seal selected for rotary shaft oil retention. The product record retains the original SKU, images and commercial data for Sapo import.
Product identification
Product
Phốt dầu NOK TCZ
SKU / Part number
NOK TCZ Oil seal
Reference size
Confirm against the drawing or existing sample
Selection guidance
Select this oil seal by checking the equipment model, installation dimensions, working fluid, temperature, pressure, speed and operating cycle. A matching nominal size alone does not guarantee interchangeability; the profile and mating groove must also correspond to the application.

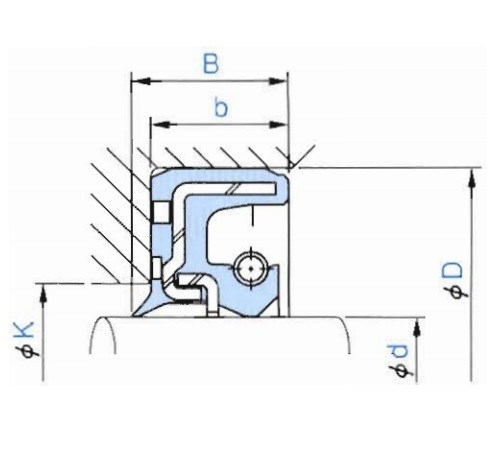

Technical dimensions
The original numeric size data is retained below. Confirm all units, tolerances and mating dimensions before ordering.
| Dimension | Part Number | ||||
|---|---|---|---|---|---|
| ID (mm) | OＤ (mm) | ｂ | Ｂ | Ｋ | |
| 20 | 40 | 9 | 10.3 | 24 | AP 1031 E0 |
| 25 | 45 | 9 | 10.3 | 29 | AP 1336 E0 |
| 30 | 50 | 9 | 10.3 | 34 | AP 1706 F0 |
| 35 | 55 | 9 | 10.3 | 39 | AP 2083 E0 |
| 40 | 62 | 9 | 10.3 | 44 | BP 3590 E0 |
| 45 | 68 | 9 | 10.3 | 49 | AP 2666 F0 |
| 50 | 72 | 9 | 10.3 | 54 | AP 2861 F0 |
| 55 | 78 | 9 | 10.3 | 59 | AP 3053 E0 |
| 60 | 82 | 9 | 10.3 | 64 | AP 3220 E0 |
| 65 | 90 | 9 | 10.3 | 69 | BP 3054 F0 |
| 20 | 40 | 9 | 10.3 | 24 | AP 1031 F0 |
| 25 | 45 | 9 | 10.3 | 29 | AP 1336 F0 |
| 30 | 50 | 9 | 10.3 | 34 | AP 1706 G0 |
| 35 | 55 | 9 | 10.3 | 39 | AP 2083 F0 |
| 40 | 62 | 9 | 10.3 | 44 | BP 3590 F0 |
| 45 | 68 | 9 | 10.3 | 49 | AP 2666 G0 |
| 50 | 72 | 9 | 10.3 | 54 | AP 2861 G0 |
| 55 | 78 | 9 | 10.3 | 59 | AP 3053 F0 |
| 60 | 82 | 9 | 10.3 | 64 | AP 3220 F0 |
| 65 | 90 | 9 | 10.3 | 69 | BP 3054 G0 |
Installation and maintenance
- Clean the groove, shaft or housing and remove burrs, sharp edges and contamination.
- Compare the new component with the removed sample and confirm its orientation.
- Use a compatible assembly lubricant and protect the sealing edge while passing threads, keyways or ports.
- Install without twisting, overstretching or striking the sealing surface.
- Start the equipment at low load and inspect for leakage, heat, noise or abnormal friction.
FAQ
How do I confirm the correct size?
Provide the SKU, equipment model, measured dimensions and a clear photograph of the existing part.
Can products with the same nominal size be interchanged?
Only after the profile, material, tolerances and operating conditions have also been verified.
Which material should be selected?
Material selection depends on fluid compatibility, temperature, pressure, speed and required service life.
What information is needed for a quotation?
Send the product code, quantity, dimensions, working conditions and delivery location.
Request a quotation for Phốt dầu NOK TCZ
Sealtech Vietnam can cross-reference the product by SKU, dimensions, equipment model and application data.
