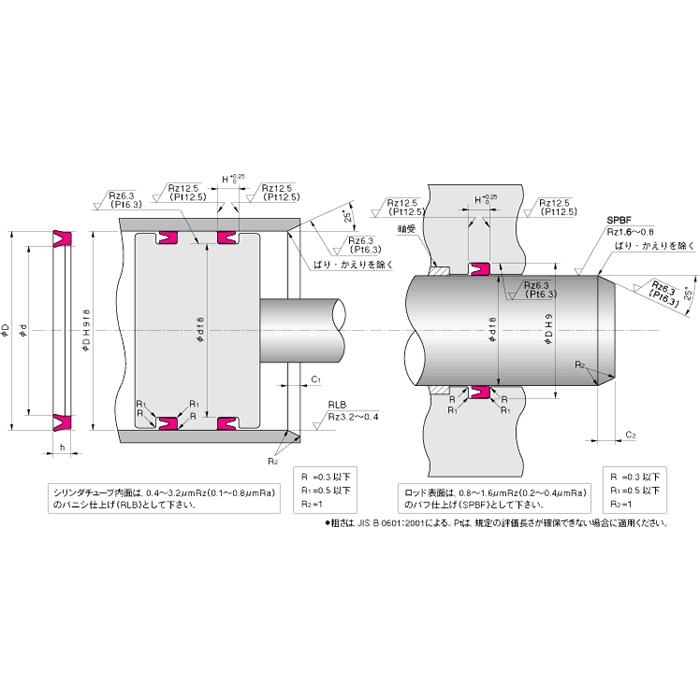

| Kích thước | Kích thước lắp đặt | NOK Part No. | ||||||
|---|---|---|---|---|---|---|---|---|
| d | D | h | φd | φD | H | C1 | C2 | |
| 3 | 6 | 2.1 | 3 | 6 | 2.5 | 2 | 1.5 | CU2968Z3 |
| 4 | 7 | 2.1 | 4 | 7 | 2.5 | 2 | 1.5 | CU2637Z1 |
| 5 | 8 | 2.1 | 5 | 8 | 2.5 | 2 | 1.5 | CU3221Z1 |
| 6 | 9 | 2.1 | 6 | 9 | 2.5 | 2 | 1.5 | CU3125Z2 |
| 7 | 10 | 2.1 | 7 | 10 | 2.5 | 2 | 1.5 | CU3013Z1 |
| 8 | 11 | 2.1 | 8 | 11 | 2.5 | 2 | 1.5 | CU3144Z1 |
| 9 | 12 | 2.1 | 9 | 12 | 2.5 | 2 | 1.5 | CU3421Z0 |
| 10 | 13 | 2.1 | 10 | 13 | 2.5 | 2 | 1.5 | CU3149Z1 |
| 10 | 14 | 2.8 | 10 | 14 | 3.2 | 2.5 | 2 | CU3460Z0 |
| 11 | 15 | 2.8 | 11 | 15 | 3.2 | 2.5 | 2 | CU3422Z0 |
| 11.2 | 15.2 | 2.8 | 11.2 | 15.2 | 3.2 | 2.5 | 2 | CU3461Z0 |
| 12 | 16 | 2.8 | 12 | 16 | 3.2 | 2.5 | 2 | CU3168Z1 |
| 12.5 | 16.5 | 2.8 | 12.5 | 16.5 | 3.2 | 2.5 | 2 | CU3462Z0 |
| 14 | 18 | 2.8 | 14 | 18 | 3.2 | 2.5 | 2 | CU3423Z0 |
| 15 | 19 | 2.8 | 15 | 19 | 3.2 | 2.5 | 2 | CU3424Z0 |
| 16 | 20 | 2.8 | 16 | 20 | 3.2 | 2.5 | 2 | CU3425Z0 |
| 18 | 22 | 2.8 | 18 | 22 | 3.2 | 2.5 | 2 | CU3282Z1 |
| 20 | 24 | 2.8 | 20 | 24 | 3.2 | 2.5 | 2 | CU3426Z0 |
| 21 | 25 | 2.8 | 21 | 25 | 3.2 | 2.5 | 2 | CU3427Z0 |
| 22 | 26 | 2.8 | 22 | 26 | 3.2 | 2.5 | 2 | CU3463Z0 |
| 24 | 30 | 4.2 | 24 | 30 | 4.7 | 3 | 3 | CU2341Z0 |
| 34 | 40 | 4.2 | 34 | 40 | 4.7 | 3 | 3 | CU3428Z0 |
