Piston & Rod seal V96F

Product code: Piston & Rod seal V96F
Products sold:
Transport fee: Charge when paying
Short Description
Piston & Rod seal V96F
 Online support

Hotline/Zalo/Viber: 0949 265 720

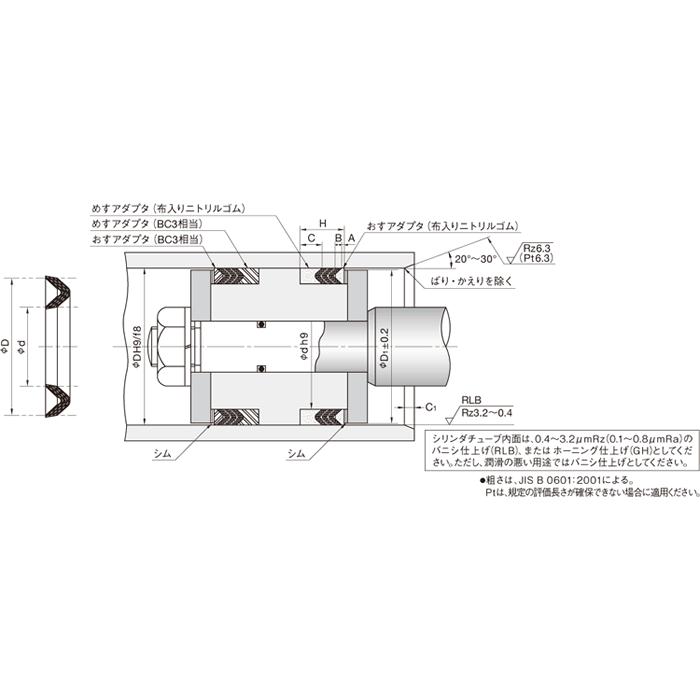

呼び番号 パッキン呼び寸法 NOK部品番号 アダプタ寸法 取付長 H C1 φd1 φD1
パッキン枚数
d D B A C 3 4 5
F 6.3 6.3 16.3
3 +0.5
-0.2
CV0002C0 3 5 17 20 23 2 d+1 D-1
F 7.1 7.1 17.1 CV0006C0 2.5
F 8  8 18 CV0011C0
F 9 9 19 CV0019C0
F 10 10 20 CV0028C0
F 11.2 11.2 21.2 CV0038C0
F 12.5 12.5 22.5 CV0047C0
F 14 14 24 CV0057C0
F 16 16 26 CV0085C0
F 15 15 28 CV0071C0 6.5 18.5 21.5 24.5 3.5
F 18 18 31 CV0109C0
F 18.5 18.5 31.5 CV0114C0
F 20 20 33 CV0132C0
F 22.4 22.4 35.4 CV0163C0
F 25 25 38 CV0176C0
F 27 27 40 CV0220C0
F 28 28 41 CV0231C0
F 31.5 31.5 44.5 CV0280C0
F 32 32 45 CV0293C0
F 34 34 50
4 +0.5
-0.2
CV0309C0 8 23 27 31 4
F 35.5 35.5 51.5 CV0339C0
F 40 40 56 CV0370C0
F 45 45 61 CV0418C0
F 47 47 63 CV0441C0
F 50 50 66 CV0457C0
F 53 53 69 CV0503C0
F 55 55 71 CV0518C0
F 56 56 72 CV0539C0
F 60 60 76 CV0562C0
F 63 63 79 CV0599C0
F 64 64 80 CV0620C0
F 67 67 87
5 +0.5
-0.2
CV0651C0 10 28 33 38 5 D-2
F 70 70 90 CV0674C0
F 71 71 91 CV0701C0
F 75 75 95 CV0711C0
F 80 80 100 CV0755C0
F 85 85 105 CV0793C0 d+2
F 90 90 110 CV0827C0
F 92 92 112 CV0850C0
F 95 95 115 CV0855C0
F 100 100 120 CV0873Y0
F 105 105 125 5 CV0928C0 3 d+2 D-2
F 106 106 126
5 +0.5
-0.2
CV0940C0
F 112 112 132 CV0967C0
F 118 118 138 CV0990C0
F 120 120 140 CV0994C0
F 125 125 150
6 +0.5
-0.2
CV1018C0 12.5 33.5 39.5 45.5 6.5
F 132 132 157 CV1054C0
F 135 135 160 CV1063C0
F 140 140 165 CV1088C0
F 145 145 170 CV1117C0
F 150 150 175 CV1144C0
F 155 155 180 CV1177C0
F 160 160 185 CV1184C0
F 165 165 190 CV1204C0
F 170 170 195 CV1216C0
F 175 175 200 CV1236C0
F 180 180 205 CV1261C0
F 190 190 215 CV1287C0
F 199 199 224 CV1309C0
F 200 200 225 CV1316C0
F 212 212 237 CV1351C0
F 224 224 249 CV1385C0
F 225 225 250 CV1393C0
F 236 236 261 CV1417C0 D-3
F 250 250 275 CV1446C0
F 265 265 297
7 +0.8 -0.3
CV1487C0 16 40 47 54 7.5 d+3
F 280 280 312 CV1513C0
F 300 300 332 CV1540C0
F 315 315 347 CV1570C0
F 335 335 367 CV1593C0
F 355 355 387 CV1608C0
F 375 375 407 CV1631A0
F 400 400 432 CV1642C0
F 425 425 457 CV1665C0
F 450 450 482 CV1889C0
F 475 475 507 CV1681C0
F 500 500 532 CV1692C0
F 530 530 570
8 +1.2 -0.4
CV1701C0 20 47 55 63 10
F 560 560 600 CV1890C0
F 600 600 640 CV1827C0
F 630 630 670 CV1729C0



呼び番号 布入りニトリルゴムアダプタ 金属(BC3相当)アダプタ
おす めす おす めす
呼び番号 NOK Part No. 呼び番号 NOK Part No. 呼び番号 NOK Part No. 呼び番号 NOK Part No.
F 6.3 VM1- 6.3 CP3673A0 VF1- 6.3 CP0839A0 VM2- 6.3 CP3673B0 VF2- 6.3 CP0840B0
