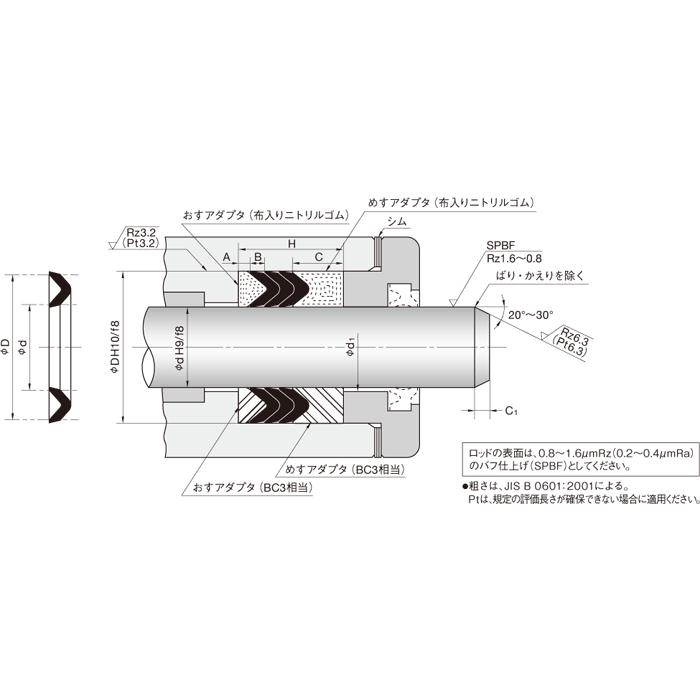

Piston & Rod seal V96H

Product code: Piston & Rod seal V96H
Products sold:
Transport fee: Charge when paying
Short Description
Piston & Rod seal V96H
 Online support

Hotline/Zalo/Viber: 0949 265 720

Mã hàng Kích thước seal NOK Part No. Kích thước H C1 φd1 φD1

d D B A C 3 4 5
H 6.3 6.3 16.3 2,5 ± 0,3 CV0001F0 3 5 15.5 18 20.5 2 d + 1 D-1
H 7.1 7.1 17.1 CV0005F0 2.5
H 8 8 18 CV0010F0
H 9 9 19 CV0018F0
H 10 10 20 CV0027F0
H 11.2 11.2 21.2 CV0037F0
H 12.5 12.5 22.5 CV0046F0
H 14 14 24 CV0056F0
H 16 16 26 CV0084F0
H 15 15 28 3,0 ± 0,3 CV0071F0 6.5 18.5 21.5 24.5 3.5
H 18 18 31 CV0109F0
H 18.5 18.5 31.5 CV0114F0
H 20 20 33 CV0132F0
H 22.4 22.4 35.4 CV0163F0
H 25 25 38 CV0176F0
H 27 27 40 CV0220F0
H 28 28 41 CV0231F0
H 31.5 31.5 44.5 CV0280F0
H 32 32 45 CV0293F0
H 34 34 50 3,5 ± 0,3 CV1893F0 8 21.5 25 28.5 4
H 35.5 35.5 51.5 CV0338F0
H 40 40 56 CV0369F0
H 45 45 61 CV0417F0
H 47 47 63 CV0440F0
H 50 50 66 CV0456F0
H 53 53 69 CV0502F0
H 55 55 71 CV0517F0
H 56 56 72 CV0538F0
H 60 60 76 CV0561F0
H 63 63 79 CV0598F0
H 64 64 80 CV0619F0
H 67 67 87 4,0 ± 0,3 CV0650F0 10 25 29 33 5 D-2
H 70 70 90 CV0673F0
H 71 71 91 CV0700F1
H 75 75 95 CV0710F0
H 80 80 100 CV0754F0
H 85 85 105 CV0792F0 d + 2
H 90 90 110 CV0826F0
H 92 92 112 CV0849F0
H 95 95 115 CV0854F0
H 100 100 120 CV0872F0
H 105 105 125 CV0927F0
H 106 106 126 CV0939F0
H 112 112 132 CV0966F0
H 118 118 138 CV1896F0
H 120 120 140 CV0993F0
H 125 125 150 5,0 ± 0,3 CV1017F0 12.5 30.5 35.5 40.5 6.5
H 132 132 157 CV1053F0
H 135 135 160 CV1062F0
H 140 140 165 CV1087F0
H 145 145 170 CV1116F0
H 150 150 175 CV1143F0
H 155 155 180 CV1176F0
H 160 160 185 CV1183C0
H 165 165 190 CV1203F0
H 170 170 195 CV1215F0
H 175 175 200 CV1235F0
H 180 180 205 CV1260F0
H 190 190 215 CV1286F0
H 199 199 224 CV1308F0
H 200 200 225 CV1315F0
H 212 212 237 CV1350F0
H 224 224 249 CV1384F0
H 225 225 250 CV1392F0
H 236 236 261 CV1416F0 D-3
H 250 250 275 CV1445F0
H 265 265 297 6 ± 0,4 CV1486F0 16 37 43 49 7.5 d + 3
H 280 280 312 CV1512F0
H 300 300 332 CV1539F0

Mã hàng Part No. Part No.
