TEMAPLUS
TEMAPLUS is an industrial industrial seal selected for industrial equipment sealing. The product record retains the original SKU, images and commercial data for Sapo import.
Product identification
Product
TEMAPLUS
SKU / Part number
TEMAPLUS
Reference size
Confirm against the drawing or existing sample
Selection guidance
Select this industrial seal by checking the equipment model, installation dimensions, working fluid, temperature, pressure, speed and operating cycle. A matching nominal size alone does not guarantee interchangeability; the profile and mating groove must also correspond to the application.
Technical dimensions
The original numeric size data is retained below. Confirm all units, tolerances and mating dimensions before ordering.
| TEMAPLUS | |||||
| Max. working pressure | MPa | 13 | |||
| Max. working temperature | °C | Continual | 250 | steam 200 | |
| Peak | 450 | ||||
| Application: water, water vapour, gas, oil, alcohols, fuel, basic chemicals | |||||
| TECHNICAL PARAMETERS | Corresponding standard | Testing acc. to TP 62-085-17 | |||
| DENSITY | g.cm3 | 1,7 – 2,0 | DIN 28 090 - 2 | ||
| RESIDUAL STRESS* | MPa | 32 | DIN 52 913 | ||
| COMPRESSIBILITY | % | 5 – 15 | ASTM F 36 J | ||
| RECOVERY | % | 50 | ASTM F 36 J | ||
| SPEC. LEAKAGE RATE | mg/(s.m) | 0,03 | DIN 3535 - 6 | ||
| FLUID RESISTANCE - THICKNESS CHANGE | |||||
| ASTM OIL - IRM 903, ČSN ISO 1817 5 h/150 °C max. |
% | 3 | ASTM F 146 | ||
| ASTM FUEL B - CSN ISO 1817 5 h/23 °C max. | % | 5 | ASTM F 146 | ||
| FLEXIBILITY | no cracks and breaks | ASTM F 147 | |||

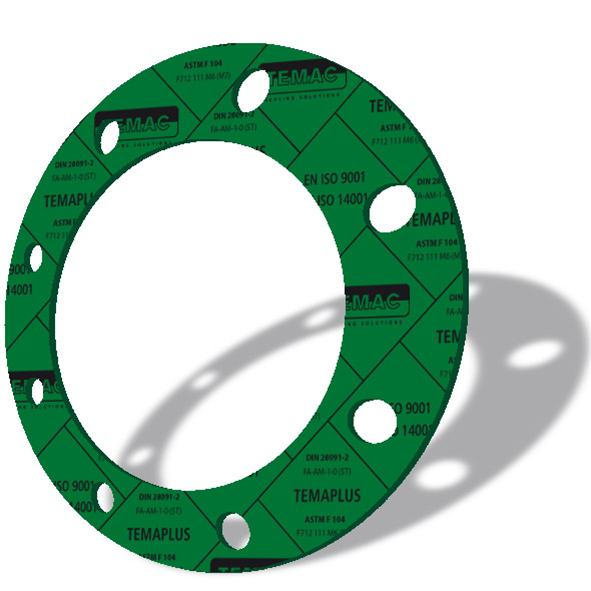

| COLOR AND PRINTING | GREEN – branded on one side TEMAPLUS DIN 28 091 – 2 FA-MA-1-0 ASTM F 104 F 712 111 M6 |
||||
| CERTIFICATION: DNV-GL, TZW, DVGW, BAM, TA Luft, WRAS, UA – Tesko | |||||
Installation and maintenance
- Clean the groove, shaft or housing and remove burrs, sharp edges and contamination.
- Compare the new component with the removed sample and confirm its orientation.
- Use a compatible assembly lubricant and protect the sealing edge while passing threads, keyways or ports.
- Install without twisting, overstretching or striking the sealing surface.
- Start the equipment at low load and inspect for leakage, heat, noise or abnormal friction.
FAQ
How do I confirm the correct size?
Provide the SKU, equipment model, measured dimensions and a clear photograph of the existing part.
Can products with the same nominal size be interchanged?
Only after the profile, material, tolerances and operating conditions have also been verified.
Which material should be selected?
Material selection depends on fluid compatibility, temperature, pressure, speed and required service life.
What information is needed for a quotation?
Send the product code, quantity, dimensions, working conditions and delivery location.
Request a quotation for TEMAPLUS
Sealtech Vietnam can cross-reference the product by SKU, dimensions, equipment model and application data.
