For plunger pumps

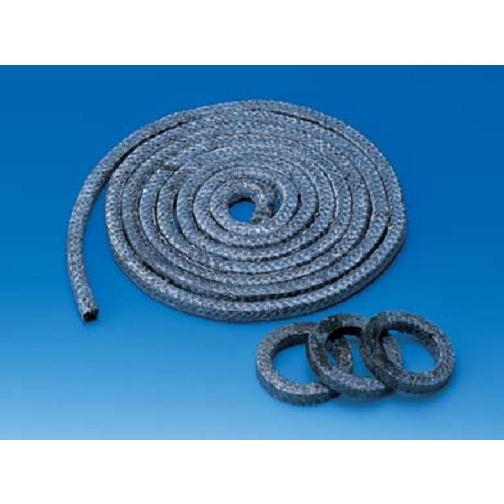

This coil packing is manufactured by treating high-strength carbon fiber with a PTFE dispersion with subsequent plaiting of the strands to an angular cross-section and finishing with PTFE and colloidal graphite dispersion.
sThe high strength properties of the carbon fiber material ensure outstanding endurance and elasticity properties and make the product ideal for use as a shaft seal for reciprocating machines handling fluids such as water and oil based fluids and solvent vapors.
FEATURES
Carbon Fiber Coil PackingCoil packing of high-tension carbon fiber yarn, processed with PTFE dispersion, then braided into square cross section and finished with PTFE and fine graphite (6399L processed with lubricant)
APPLICATION
Used as seal for reciprocating machine shaft for water/oil fluid, solvent vapor, etc. and for valve stem.
SPECIFICATION
FLUID |
Water, oil, steam | |
TEMP |
C | 300 |
PRESSURE |
Mpa | 43.1 |
AVAILABLE THICKNESS SIZE |
mm | 5 |
DIMENSION |
mm | 3.0 to 25.4 |
