For chemical fluids in general-High-peripheral speed rotating shafts

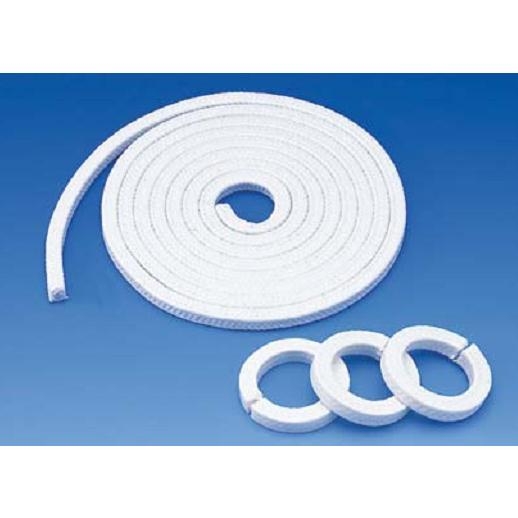

This coil packing product consists of PTFE fibers firmly combined to an angular section. The PTFE fibers contain a white filler and lubricant.
It has superior thermal expansion, thermal conductivity and chemical resistance properties.
The packing causes virtually no shaft friction.
The use of a 100% PTFE gland packing permits use at higher peripheral speeds.
Meets the Food Hygiene Law and the specifications and standards applicable to food products and additives.
FEATURES
Filler Mixed VALFLON Fiber Coil Packing Coil packing made of PTFE fiber integrated with white filler and lubricating oil and braided into a square cross-section.
APPLICATION
Ideal for a shaft seal for rotary pumps for food and medicine industries that should avoid contamination. It may also be used as s shaft seal for rotary equipment depending on the conditions of use. (Conforms to the Notices of the Ministry of Health and Welfare No.20 and 370.)
SPECIFICATION
FLUID |
Water, oil, steam | |
TEMP |
C | 260 |
PRESSURE |
Mpa | 4.9 |
AVAILABLE THICKNESS SIZE |
mm | 16 |
DIMENSION |
mm | 3.0 to 25.4 |
